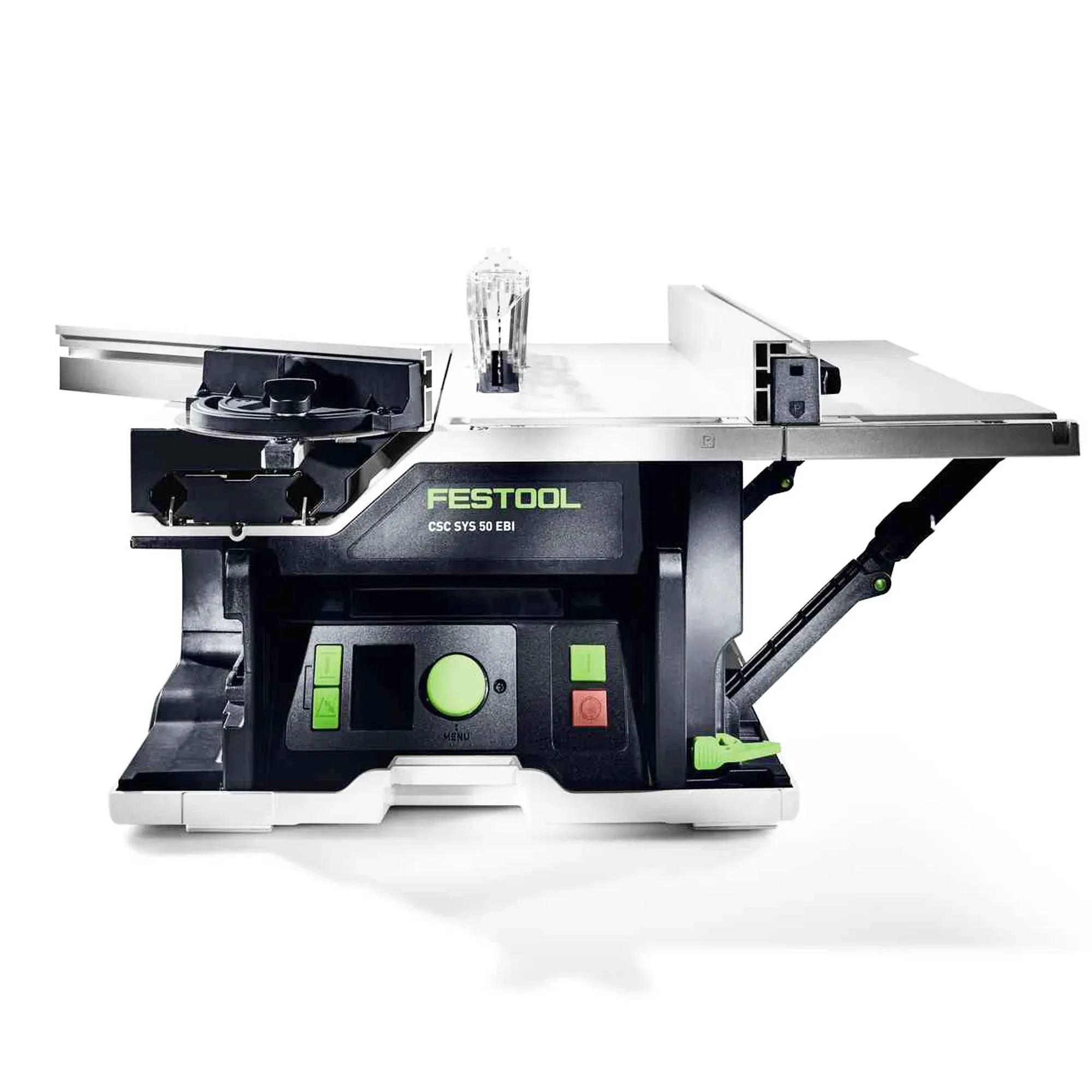

Festool bench saw CSC SYS 50 EBI-Set 2x18V 5Ah battery is so compact that it fits into a Systainer. Although its external dimensions are extraordinarily manageable, it is surprisingly versatile in use: with longitudinal cuts up to 280 mm, a transverse cutting width up to 450 mm and inclined cuts from -2 to 47,000 mm. . Unique digital operation delivers highly accurate results up to a tenth of a millimeter. The 2x18 volt dual battery system in combination with the EC-TEC brushless motor stands out for its power and traction force: compared to the machines connected to the network there is no noticeable difference. Together with the UG-CSC-SYS trolley, a perfect work table is always available and transport from the vehicle to the workplace is effortless. In short: cutting precision to take with you!
- Versatile: longitudinal cuts up to 280 mm; width of transverse cuts up to 450 mm. Inclined cuts from -2 laying to 47 laying
- Practical: With a cutting depth of up to 35 mm, even inclined cuts down to -10 thick; ideal for undercut cutting of panels.
- Compact and mobile: to be transported with one hand in the practical Systainer format. Even lighter with the UG-CSC-SYS trolley
- Maximum precision: Height and angle can be adjusted electrically at the touch of a button via the digital display, with an accuracy of 10 mm
- Perfect repeatability: height and angle adjustment (mm and inches) is parallax-free via the digital display, which is more accurate than any eye measurement. Repeatable cuts are guaranteed with precision
- Comfortable: four blade positions can be stored and selected via the digital display
- High precision parallel stop: robust parallel stop with double locking (via a single locking lever) for exact alignment and perfect cutting results
- High precision angle stop: The angle stop is optimally aligned and locked centrally by a groove on the slide. For bevel angles from -70
- Completely shock-free: ball slides for parallel and angular cuts with maximum precision
- Powerful: EC-TEC brushless motor with a high speed of 6,800 rpm/min ensures fast saw feed and perfect cutting results
- Durable: The combination of brushless EC-TEC motor and dual battery system with two 18 V batteries (from 4.0 Ah) ensures long-lasting performance
- Long life: the brushless EC-TEC motor is durable, robust and maintenance-free
- Work according to the material: with blades for each material; preselection of the number of turns for a specific speed according to the material is carried out
- Versatile: longitudinal cuts up to 280 mm; width of transverse cuts up to 450 mm. Inclined cuts from -2 laying to 47 laying
- Practical: With a cutting depth of up to 35 mm, even inclined cuts down to -10 thick; ideal for undercut cutting of panels.
- Compact and mobile: to be transported with one hand in the practical Systainer format. Even lighter with the UG-CSC-SYS trolley
- Maximum precision: Height and angle can be adjusted electrically at the touch of a button via the digital display, with an accuracy of 10 mm
- Perfect repeatability: height and angle adjustment (mm and inches) is parallax-free via the digital display, which is more accurate than any eye measurement. Repeatable cuts are guaranteed with precision
- Comfortable: four blade positions can be stored and selected via the digital display
- High precision parallel stop: robust parallel stop with double locking (via a single locking lever) for exact alignment and perfect cutting results
- High precision angle stop: The angle stop is optimally aligned and locked centrally by a groove on the slide. For bevel angles from -70
- Completely shock-free: ball slides for parallel and angular cuts with maximum precision
- Powerful: EC-TEC brushless motor with a high speed of 6,800 rpm/min ensures fast saw feed and perfect cutting results
- Work according to material: with blades for each material; preselection of the speed for a specific speed according to the material is carried out via the digital display
- Low dust: Dust bag for working without dust and without mobile suction unit
- For healthy work, in a system perspective: also ideal in combination with Festool battery vacuums
- Compatible: Fits the entire Systainer Festool system and bottool vehicle equipment

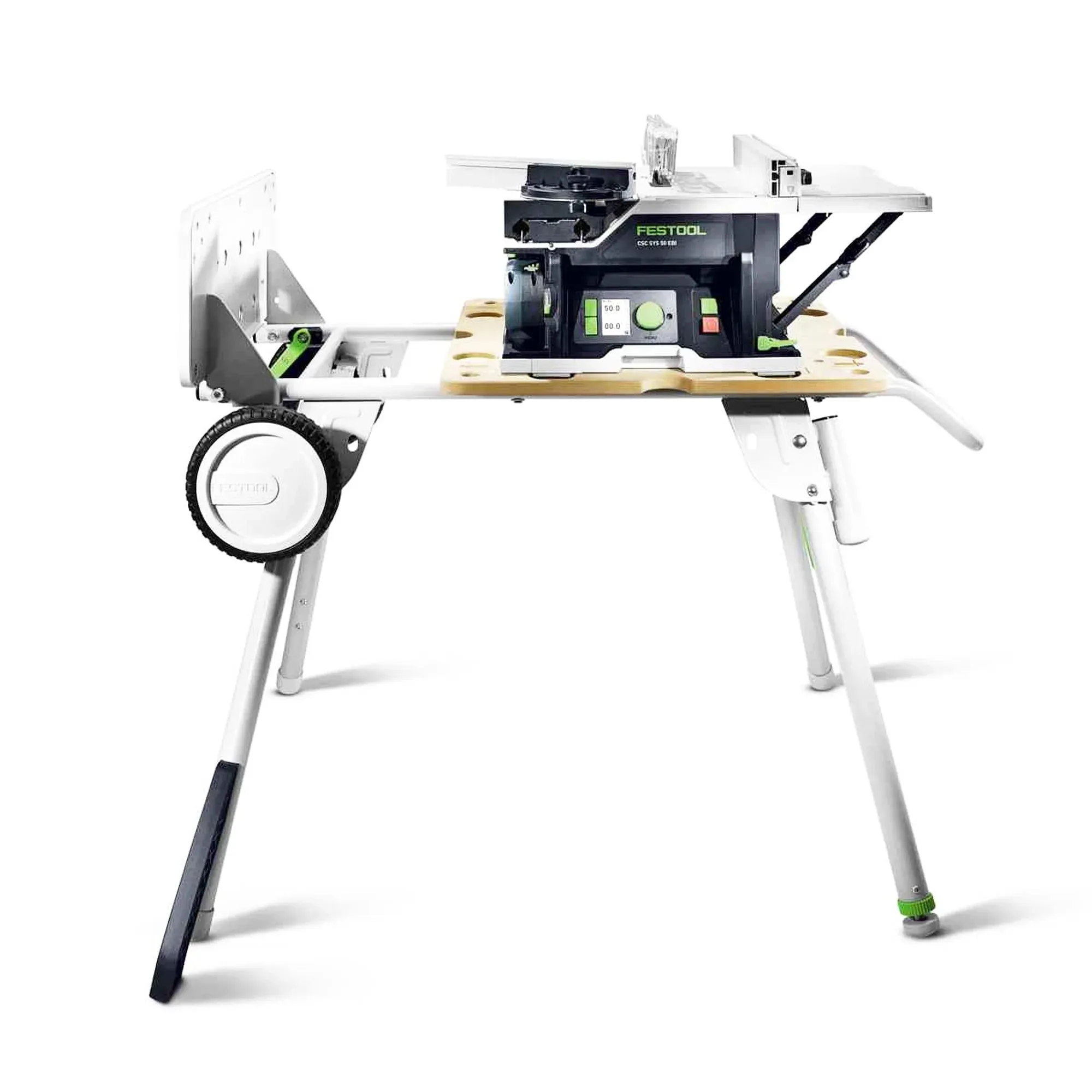

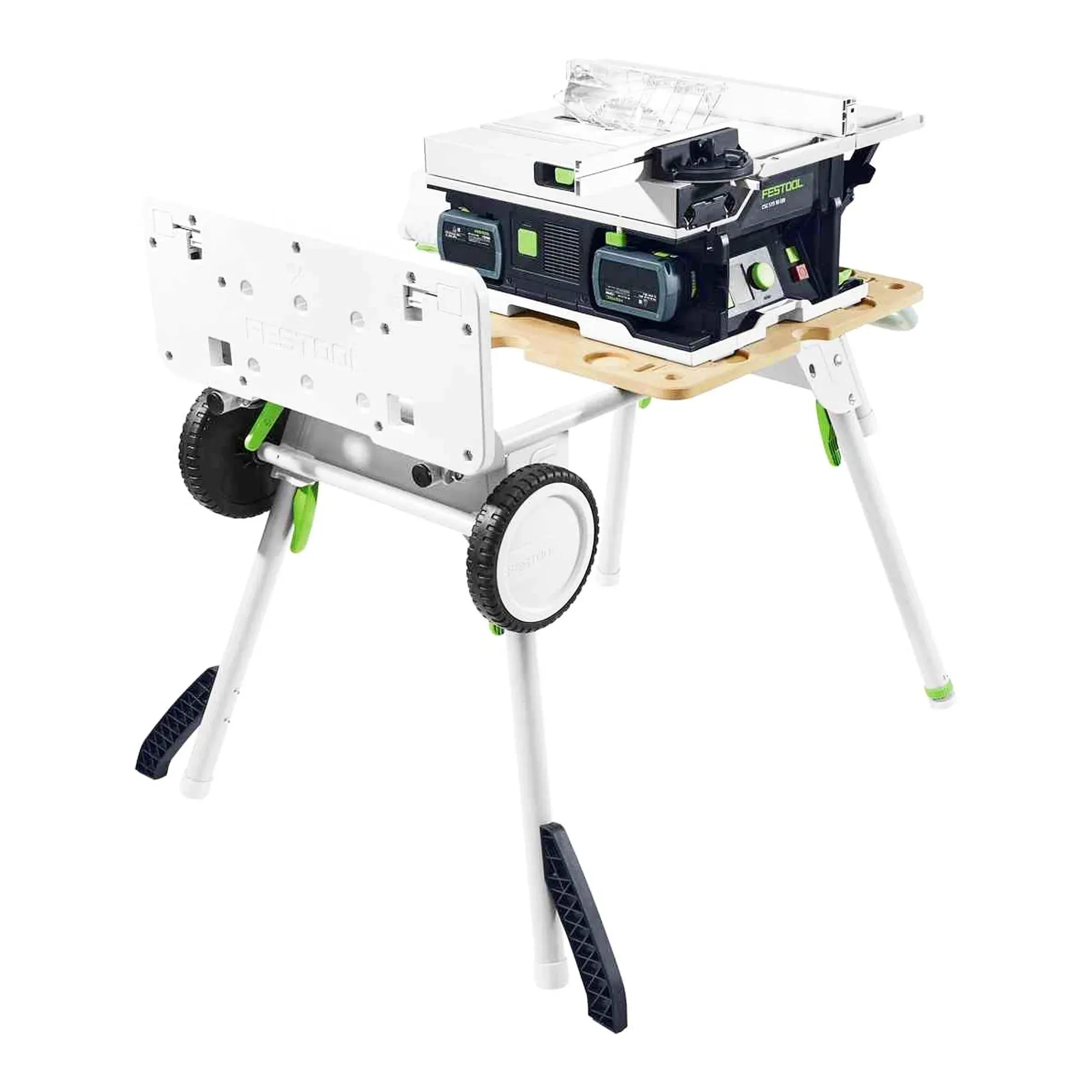

- Flexible trolley: The UG-CSC-SYS trolley is the perfect transport solution to the place of use and the ideal work table
- Unique in the world: three years warranty even on batteries and battery chargers
TECHNICAL SPECIFICATIONS
- Battery voltage (rated voltage) 2 x 18 V
- No-load revolutions 4 500 - 6 800 min ¹
- Blade housing hole 20.00 mm
- Angle of inclination -10 - 47
- Cutting depth 0,0 - 48 mm
- Cutting depth 45μ 0 - 34 mm
- Depth of cut -10 then 21 - 32 mm
- Chamfering angle 0 - 70 inches
- Parallel cutting width 280,00 mm
- Height of floor 228,00 mm
- Measurements (W x W x H) 512 x 396 x 296 mm
- Dust extraction attachment 27 mm
- Type of drive Battery
- Product weight without accessories 15,00 kg
- Battery capacity 5,00 Ah
- Saws: EN 62841 standard series
- Saws: Uncertainty (noise) K 3,00 dB
- Saws: LWA sound power level of type A 98.00 dB(A)
- Saws: Sound pressure level lpa type A 85.00 dB(A)

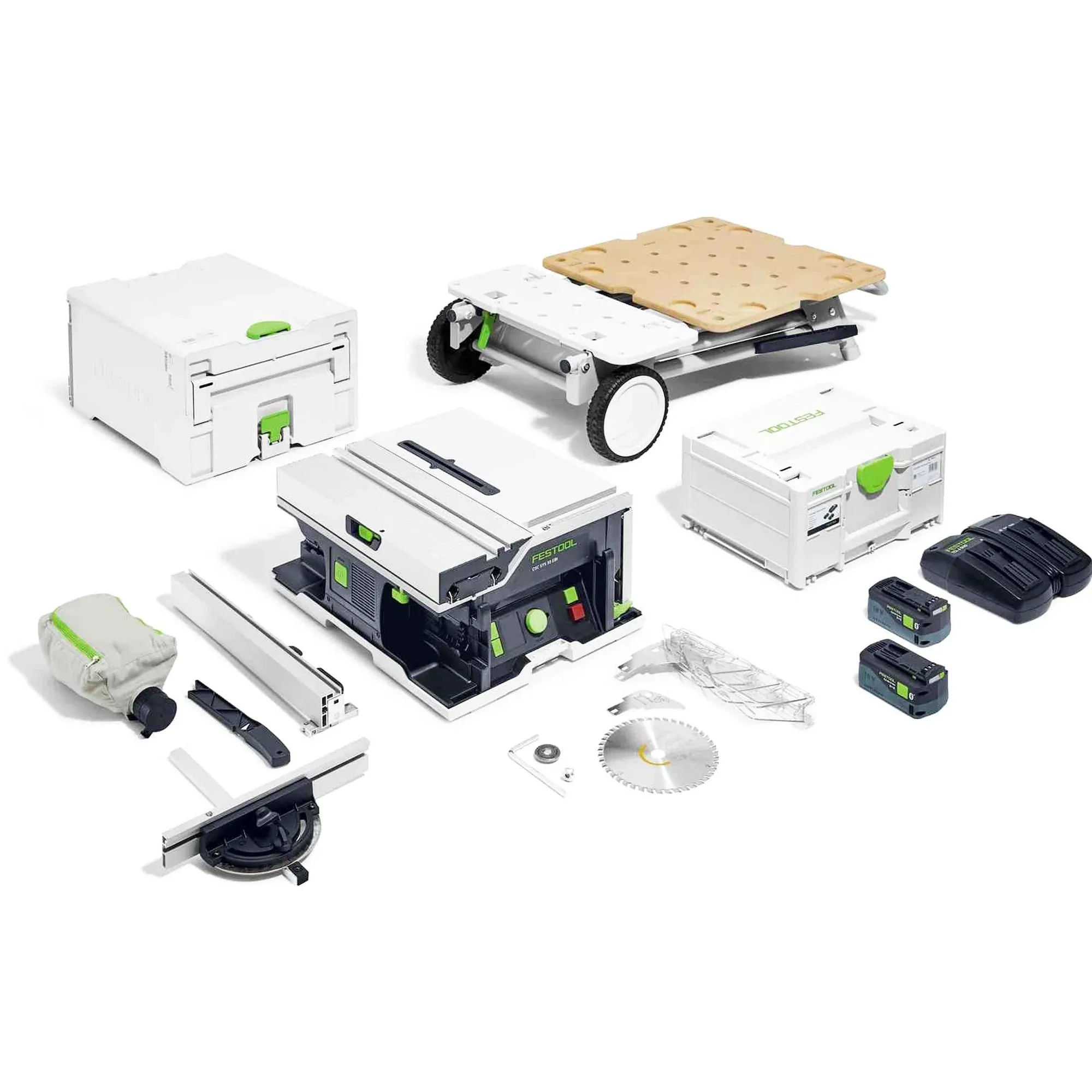

ACCESSORIES INCLUDED
- Blade HW 168x1,8x20 WD42
- parallel beat
- pusher
- angular stop
- chip-collecting bag
- wedge cleft for hidden cuts
- bumper wedge with protective cap
- 6 mm allen key
- Energy Set SYS 18V 2x5,0/TCL 6 DUO
- UG-CSC-SYS trolley
